Product

Wall Panels

Cement Sheet & PUF Sandwich panel

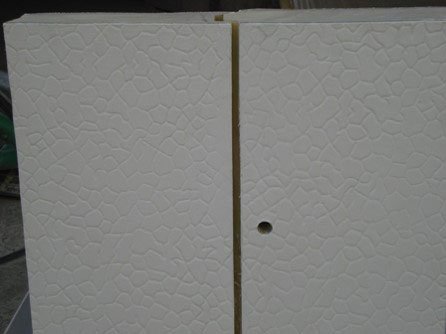

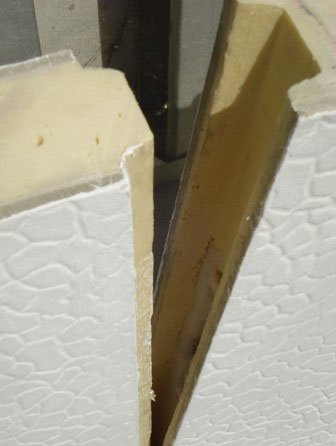

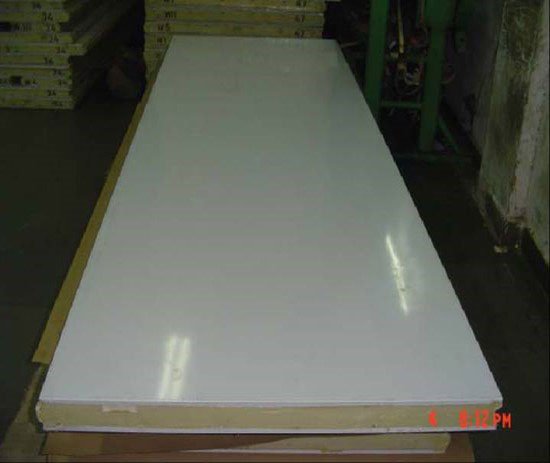

PUF Panels are fabricated sandwich-panels engineered the laboratory and manufactured at BW / LW with CFC (chlorofluorocarbon) free PUF material. These panels are in ready to assemble condition for cold storage, shelters, building sheds. Panels are provided with Tongue & Groove joints and equipped with specially designed Cam locks to enhance airtight assembly. PUF Sandwich panels are available with Cement Heavy Wall Board as per IS14862, Type A material. Thickness available ranges from 50 mm to 150 mm. Sandwich PUF Panels are also available in different sizes & thickness.

PUF Panels – having 6mm / 8mm Cement Heavy Wall Board as per IS14862, Type A material on either sides and it has CFC (chlorofluorocarbon) free PUF material in your desired thickness and standard density of 40 KG M3 .

Cement Foam Concrete Panels.

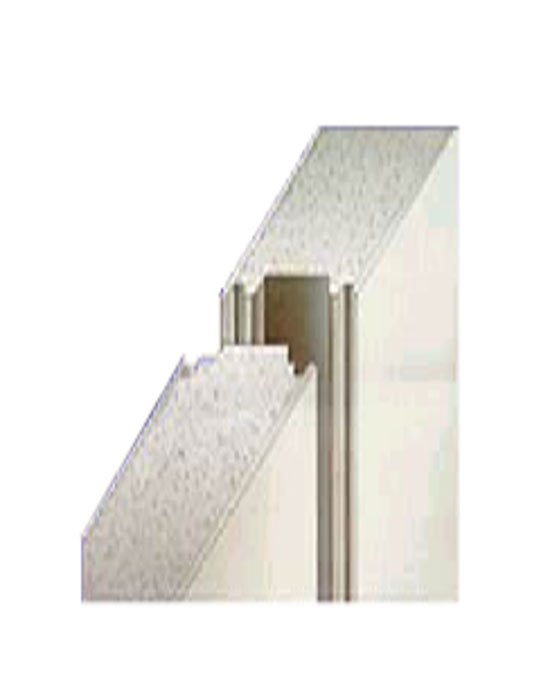

Cement Panels of 50mm / 75mm thickness Non Asbestos Fibre reinforced aerated cement core sandwich modules made out of light weight fibre reinforced aerated cement / concrete core composed of portland cement, flyash, binders etc., and 4mm thick Non asbestos fibre cement Boards confirming to IS 14862:2000 and ISO:8336:1993(E) on either side of the core, having a tongue and groove on longitudinal side of the modules. These panels are erected / installed using galvanized iron steel tracks of 1mm thickness as bottom & top track used for fixing to the floor and top of the wall respectively. A GI corner channel is used for bracing the two corner walls in L shape.

GI sheet & Puff Sandwich panel

Polyurethane Insulated 60 / 80mm thick panels of PUF Density 40 ± 2Kg/m3. The individual panels will be firmly locked together by Cam locks. The material shall be 0.5 mm thick PCGI sheet on both sides

STRUCTURE:

MS Tubular Hollow Section(s) are normally used for trusses, purlins and columns. The section of the hollow tubular section depends on the size, the span and the place where the structure is to be constructed.

ROOF:

AC Cement Sheets, CGI Sheets, Colour-coated Sheets in tile profile or high rib profile, Fibre Domes.

WINDOW / WINDOW FRAMES:

Windows & Window Frames have an option of MS Steel Pressed, Aluminum Anodized / Powder Coated, Teak Wood.

DOOR / DOOR FRAMES:

Door & Door Frames have an option of MS Steel, Aluminum Powder Coated / Anodized, Teak Wood.

FALSE CEILING:

False Ceiling work has option of GypBoard, Tiled False Ceiling, Acoustic Porous Tiled False Ceiling.

FLOORING:

Vitrified Tiles, Ceramic Tiles, Wooden Tiles, Marble Tiles & PVC Tiles.

FINISHING:

Interior- Oil Bound Distemper,
Exterior- SuperFine Texture Waterproof,
Metal Surfaces- Black/White Synthetic Emulsion Paint / Deco Paint.
